Description

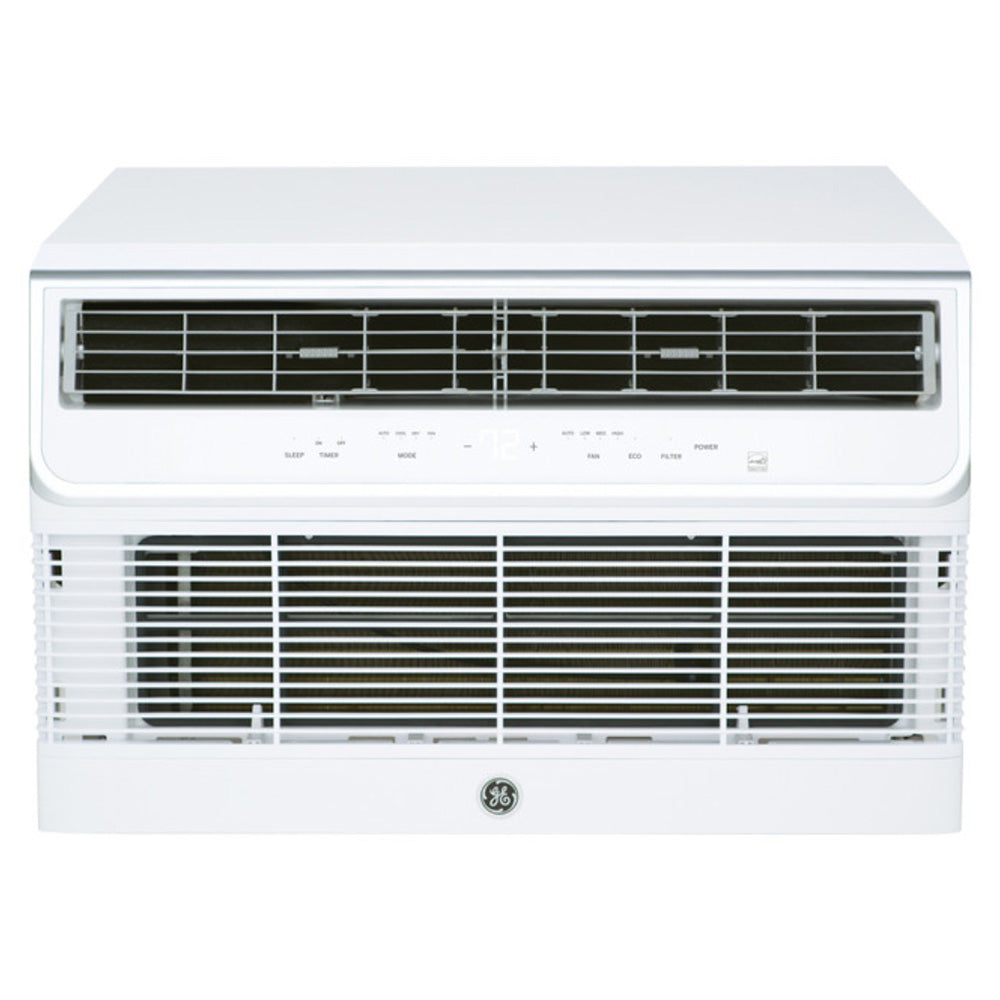

The GE AJCQ08ACH 26" Thru-the-Wall Smart Air Conditioner is an 8,300 BTU cooling unit designed for wall-mounted installation, offering efficient performance with a 10.6 EER and R-410A refrigerant. It features electronic capture controls, a Smart Fan Switch, and a digital thermostat with a temperature range of 60-85°F. The unit provides 3 cooling and 3 fan-only speeds, over/under air discharge, and 6-way adjustable louvers for optimal airflow. Additional features include an energy saver mode, 24-hour timer, filter reminder function, and a remote control with batteries included. Designed for 115V power, it operates at 780 watts with a rotary compressor for reliable cooling. The slide-in chassis allows easy installation, and it is compatible with optional grills (RAG13/RAG13A/RAG14E), making it a great choice for efficient and customizable cooling.Smart Fan Switch: Automatically adjusts fan speeds to optimize airflow and improve energy efficiency, ensuring a consistent room temperature.
Electronic Capture Controls: The intuitive touch control panel lets you easily adjust temperature, fan speeds, and other settings. A remote control—with batteries included—provides additional convenience.
WiFi & Voice Control: Built-in WiFi allows connection to the SmartHQ™ platform, and the unit is compatible with both Amazon Alexa and Google Home for seamless voice control.
Additional Features: Includes an energy saver mode, a 24-hour timer, and a filter reminder function to keep maintenance simple and ensure optimal performance.
Cooling Capacity: Provides up to 8,300 BTU of cooling (noted as 8,400 BTU in some descriptions), making it suitable for medium-sized rooms.
Energy Efficiency: Achieves a 10.6 EER and CEER rating, ensuring effective cooling while keeping energy consumption low.
Dehumidification: Removes up to 1.9 pints of moisture per hour to help maintain a comfortable indoor environment.
Refrigerant & Compressor: Uses environmentally friendly R-410A refrigerant combined with a reliable rotary compressor for consistent performance.
Air Discharge & Airflow Settings: An over/under air discharge system delivers even cooling throughout the room. With three adjustable fan speeds in both cooling and fan-only modes, the unit provides airflow rates of 250, 230, and 210 cfm.
6-Way Louver Control & Optional Grill: Direct the cool air exactly where needed with adjustable 6-way louvers. Optional grills (RAG13, RAG13A, RAG14E) offer aesthetic versatility and a finished look.
Outdoor Vent/Exhaust: Designed with proper venting capabilities, making it ideal for thru-the-wall installations.
26" Width (Overall): This is the full width of the unit, including the external sleeve or decorative grill.
25" Width (Excludes Sleeve):The actual cooling unit is 1 inch narrower, which is important when planning the wall cut-out.
16" Height (Overall): This measurement includes the complete height with the external sleeve.
15" Height (Excludes Sleeve): Represents the core unit height, ensuring a snug fit within the wall cavity.
22" Depth (Overall): The total depth of the installed unit, including the sleeve, which is critical for ensuring the unit does not protrude excessively into the room.
20" Depth (Excludes Sleeve): The depth of the cooling component itself, which is vital for designing the internal wall space.
5" Depth to Louvers: This measurement (from the front face of the unit to the louvers) ensures that cool air is delivered effectively, with proper clearance for optimal airflow and performance.
Net Weight: Weighing 82 lbs, the unit is robustly built. This substantial weight helps ensure stability when mounted but is still manageable for installation and maintenance.
Wall Cut-Out Requirements: For a seamless thru-the-wall installation, the wall opening should accommodate the overall dimensions (26" W x 16" H x 22" D). Knowing the dimensions of the cooling unit alone (25" W x 15" H x 20" D) ensures a perfect fit behind the decorative sleeve.
Aesthetic Integration: The external sleeve not only contributes to a clean, finished look but also helps conceal the mechanical components, allowing the unit to blend well with your room’s décor.
Maintenance & Accessibility: The slide-in chassis design means that essential maintenance tasks—like filter cleaning using the tilt-out, washable filter—can be performed easily without the need for extensive disassembly.
Features:
